Hypersonic Metallization
Polymer Coatings by Polymer Flame Spray Unit

Radiation waste shielding

A mixture of polymer and boron carbide powder is supplied to the flame from the stray torch to melt the powder mixture and spray it onto the surface of the coating object to apply the coating. The coating material contains up to 45% boron carbide and can be coated on metal, concrete, ceramics, etc. Composite materials of polymer and boron carbide are known for their excellent neutron shielding effect.

Composite Coating - Cross Section

Coating surface shape

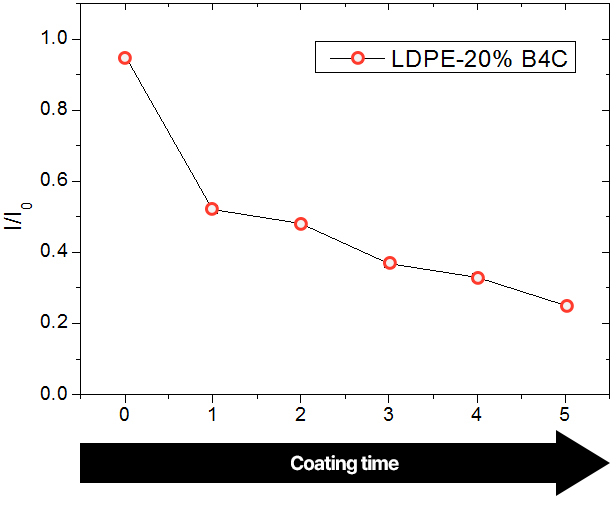

Neutron shielding effect

Neutral shielding effect increased by increasing the number of coatings
Neutron shielding effect 4 times

BIOKOM coating

BIOKOM coating to prevent corrosion by microorganisms

BIOKOM coating to prevent microbial corrosion Concrete, reinforced concrete, wood, metals, etc. can be corroded for chemical reasons or by microbial attacks. BIOKOM coating with a polymer spray gun can prevent corrosion caused by microorganisms such as mold. BIOCOM, an anti-bacterial coating agent, can be coated on concrete, wood, metal, petrochemical facilities, pipelines, wastewater storage tanks, purification facilities, and shipbuilding and marine facilities, and enables safe use without worrying about corrosion caused by microorganisms such as mold and bacteria.

Caused by bacteria Metal Corrosion Comparison Table

  • Steel in pipeline
    Corrosion rate (g/m₂/h)
    Penetration (mm/year)
    Penetration (10 years, mm)
  • If not coated
    0.787
    0.886
    8.86
  • In case of similar product coating
    0.172
    0.193
    1.93
  • In the case of BIOCOM coating
    0.043
    0.048
    0.48

ANTIBI coating

ANTIBI coating to prevent biochemical corrosion and static electricity

ANTIBI coating protects metal, concrete, and reinforced concrete from chemical and microbial corrosion, especially due to H때문S, and can simultaneously prevent static electricity from accumulating. ANTIBI's antimicrobial and anti-bacterial properties can protect products from many types of bacteria, including the Pitting Corrosion from Pipeline or Metal Products and the anaerobic sulfide bacteria and aerobic bacteria that cause decay.

BIOCOM and ANTIBI's Anti-fungal Performance Table

  • Mold type
    BIOCOM
    ANTIBI (including static electricity removal)
  • black mold
    0
    0
  • dry fungus
    0
    0
  • trachothema baride
    0
    0
  • wood decay fungus
    0
    0
  • hair fungus
    0
    0
  • Result description
    Mold is destroyed. Antimicrobial effect is maximized.
    Mold is destroyed. Antimicrobial effect is maximized.
